We are Manufacturer, Supplier, Exporter of Janatics Compact Valves G1/4 from Pune, Maharashtra, India. Also, we are Authorised Dealer, Stockist of Janatics Pneumatic Products.

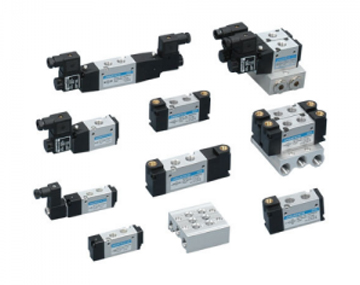

Janatics Compact Valves G1/4

Janatics Compact Valves G1/4

Description :

  • 3/2, 5/2, 5/3 valves
  • Suitable for manifold mounting
  • Mounting provision for individual unit
  • Compact size
  • Manual override
  • Wide range of manifolds available
  • wide range of coil voltages
  • Important
  • To prevent malfunctioning of the valve while operating the manual override (or) while operating the solenoid coil, ensure to have a minimum air supply of 1200 lpm to the valve through a tube of minimum ∅8 outer diameter (with minimum ∅5.5 internal diameter)

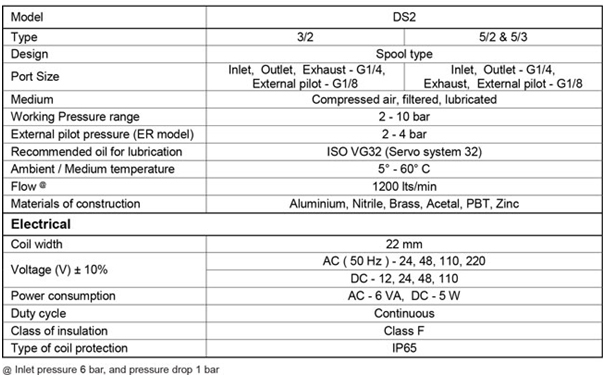

Technical Specifications :
Compact Valve G1/4
