We are Manufacturer, Supplier, Exporter of Janatics Manual Valves, Mechanical Valves, Foot Operated Valves, Manual Valves 1/4, Mechanical Valves 1/4, Manual Valves M5, Mechanical Valves M5 from Pune, Maharashtra, India. Also, we are Authorised Dealer, Stockist of Janatics Pneumatic Products.


Janatics Foot operated Valves


Manual Valves, Mechanical Valves

Description : Valve

  • Poppet type
  • High reliability
  • High response
  • Compact size
  • Long life

Foot pedal
  • Pressure die cast pedal
  • Convenient to operate without physical strain
  • Spring return type
  • Valve with lock is also available

Application These valves are used as directional control valves to operate pneumatic cylinders (single or double acting).
Function
  • A 5/2 foot operated valve connected to a pneumatic cylinder (double acting type), when pressed once and released, makes the cylinder piston to move in the forward direction and continuously keeps in that direction. When it is again pressed the lock is released and the pedal returns back due to a spring, and thus the cylinder retracts back to its home position.
  • Similarly a 3/2 foot operated valve, can be used to operate a single acting cylinder.



Technical Specifications :
Air Cylinder

request-quote

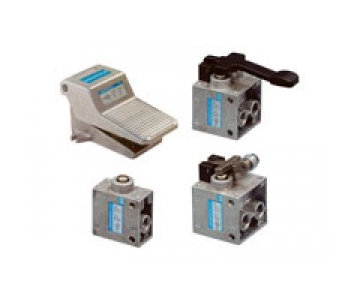

B) Janatics Manual Valves And Mechanical Valves 1/4


Manual Valves And Mechanical Valves 1/4

Description :

  • 3/2 NO / NC & 5/2 versions
  • Basic, Roller lever, Finger lever and Hand lever type available
  • Poppet seating arrangement
  • No exhaust overlap

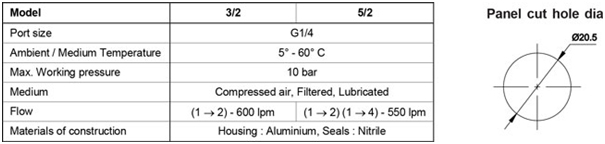

Technical Specifications :
Manual Valves And Mechanical Valves 1/4

request-quote

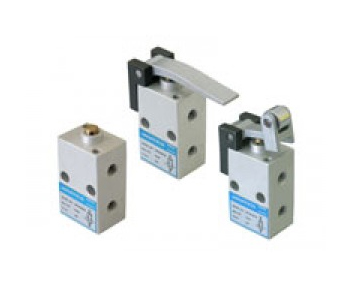

C) Janatics Manual Valves And Mechanical Valves M5


Manual Valves And Mechanical Valves M5

Description :

  • 3/2 Normally Closed version
  • Basic, Roller lever and Finger lever versions available
  • Poppet seating arrangement
  • No exhaust overlap

Technical Specifications :
Manual Valves And Mechanical Valves 1/4
